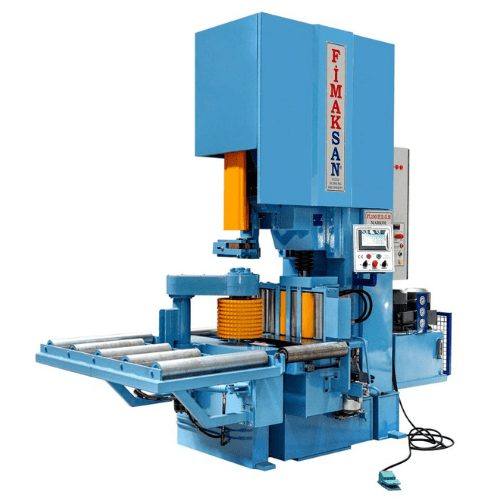

FI. 100 / HDG M RESAW – HYDRAULIC – VERTICAL
Technical Specifications
| Flywheel Diameter | 1000mm (100cm (39.4 in)) |
|---|---|
| Flywheel Width | 120mm (12cm (4.7 in)) |
| Cutting Width | Min: 10 mm (10 cm (3.9 in)) Max: 250 mm (25 cm (9.8 in)) |
| Max. Working Width | Max: 555mm (55.5cm (21.9 in)) |
| Cutting Height | Min: 20 mm (2 cm (0.8 in)) Max: 475 mm (47.5 cm (18.7 in)) |
| Feed Speed | 0 – 60 m / min |
| Main Motor | 30 kW / 40 hp / 1400 rpm |
| Sawblade Tensioning | Hydraulic |
| Sawblade Guide Adjustment | Hydraulic system – Piston |
| Weight | 3800 kg (8,378 lb). |
| Upper & Lower Bearings | SKF – C3 |
| Positioning | PLC Control Panel - Color Touch Screen 18 Adjustable set sizes ready |
| Max sawblade Size | Max: 120 X 1.0 X 8150 mm (4.7 x 0.0 x 320.9 in) |
| Min sawblade Size | Min: 80 X 1.0 X 7900 mm (3.1 x 0.0 x 311.0 in) |
| Sawblade Lubrication Spray System | Automatic - timer adjustment |
| Electric Panel (Star-Delta) | Included. and mounted |
| Belt Drive Pulley System | Mounted on the pulleys |
| Bearings Lubrication System | Manual, by hand grease pump |
| Machine Dimensions | 3120 X 240 X 50 cm (1,228.3 x 94.5 x 19.7 in) (Length, width, height) |
| Hydraulic Cooling system | Automatic thermostat radiator fan system |
