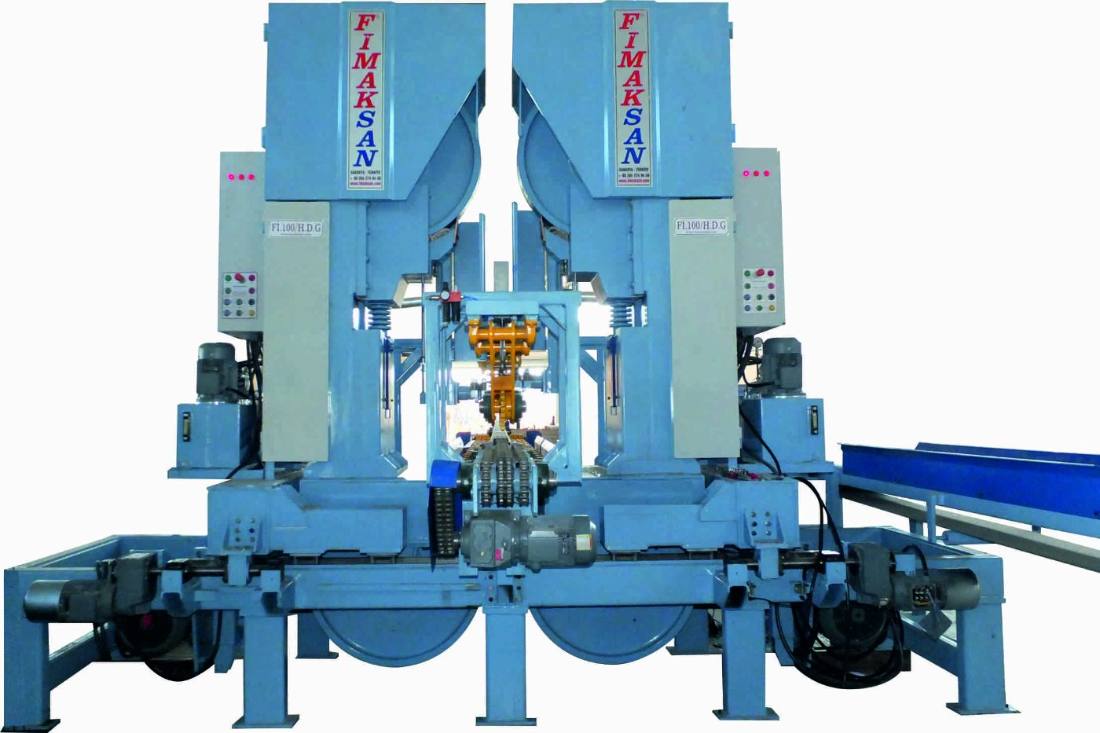

FI: 100 / HDGP 2 HYDRAULIC VERTICAL BODY PRISM
Technical Specifications
| Flywheel Diameter | 1000mm (100cm (39.4 in)) |
|---|---|
| Flywheel Width | 120mm (12cm (4.7 in)) |
| Maximum Cutting Height | 450mm (45cm (17.7 in)) |
| Min / Max. Cutting Width | Min: 90 mm ( 9 cm (3.5 in)) Max: 450 mm (45 cm (17.7 in)) |
| Main Motor | 30 kW / 40 hp / 1400 d |
| Saw Tensioner | Hydraulic |
| Saw Guide Adjustment | Hydraulic |
| Weight | 2800 kg (6,173 lb). |
| Upper and Lower Bearings | SKF C3 |
| Maximum Sawblade Length | 120 x 1.0 x 8150mm (4.7 x 0.0 x 320.9 in) |
| Minimum Sawblade Length | 80 x 1.0 x 7900mm (3.1 x 0.0 x 311.0 in) 450 |
| Lubricaton system (for blade) | Automatic with Push Button |
| Star Triangle Electric Panel | Included. Siemens or Schneider , on the machine. |
| Belt Pulley Drive System Flender Type | Mounted on the machine |
| Machine Lubrication System | Manually Lubrication thru Grease Fittings |
| Machine Body Structure | Steel construction |
| Dimensions | 145 x 120 x 350 cm (57.1 x 47.2 x 137.8 in) (Length Width Height) |
| Daily Log Cutting Capacity. | 250 m3 (≈105,950 bd ft) |
| Log Feeding Conveyors | Entrance: 5 m. Exit: 5 m. |
