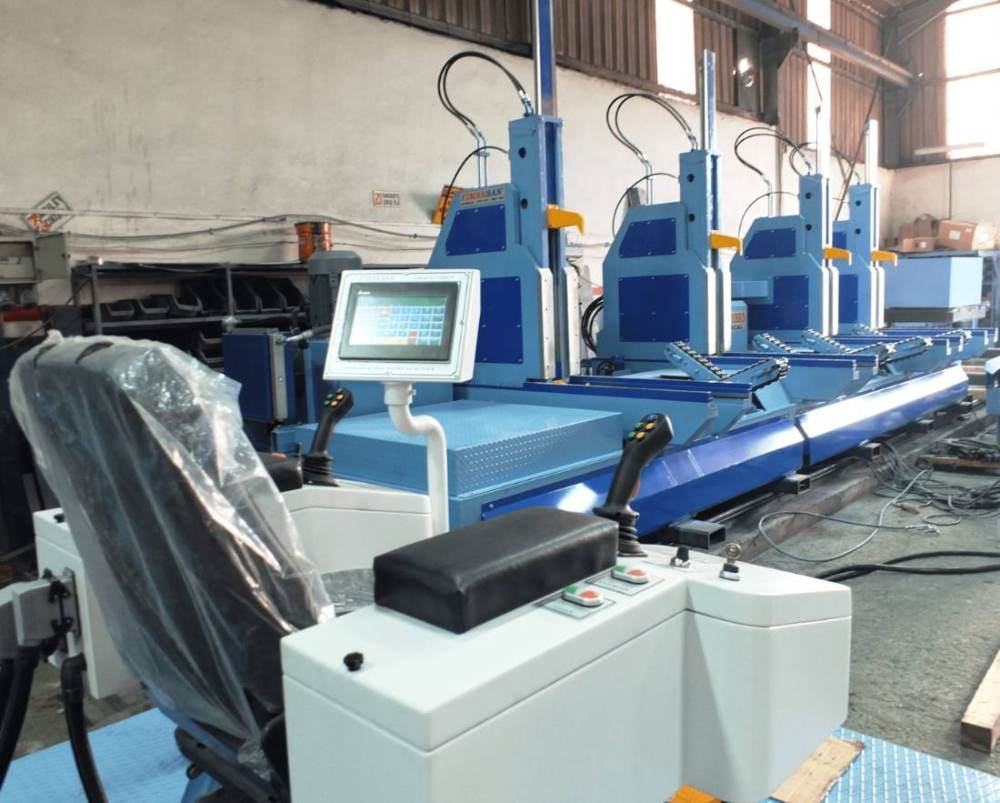

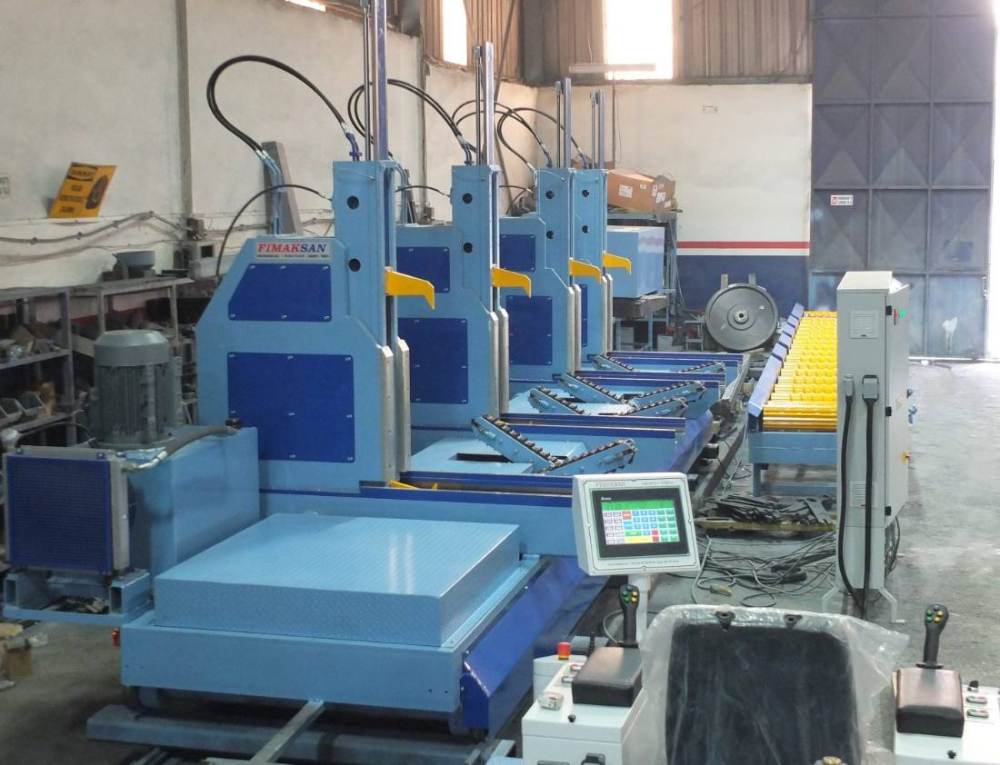

FI.160 LOG CARRIAGE – TROPICAL
- REMOTE CONTROL-PLC, TOUCH SCREEN – MCC
- EXTRA HEAVY TYPE
- 4 STEEL STRUCTURE HEADBLOCK with BRONZE BASE PLATES
- AUTOMATIC LUBRICATION
- IN & OUT MOVING HOOKS
- HEAT TREATED EXTRA HARD PILLOWS ©
- 6 DOUBLE ROW V-TYPE FLIP CHAIN
- FULL AUTOMATIC
Technical Specifications
| Log Diameter | Max. 1500mm (59.1 in) – Min. 100mm (More Optional) |
|---|---|

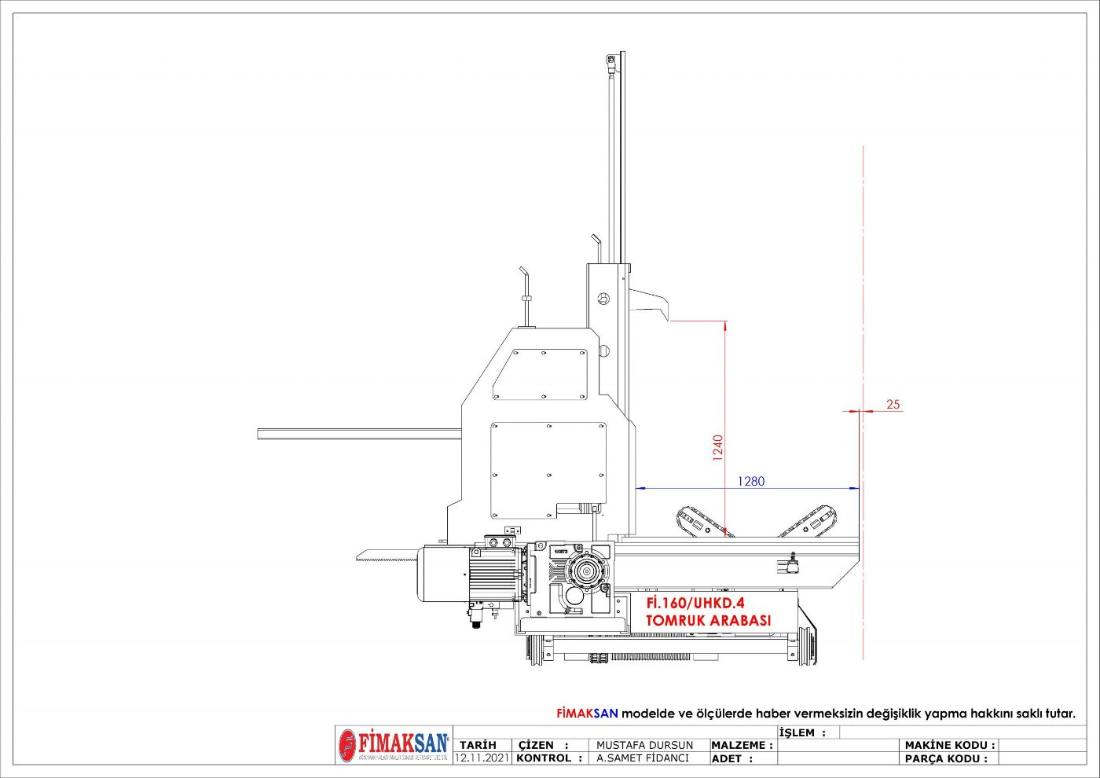

| Headblock Opening | 1280mm (50.4 in) |
| Max. Hook Opening | 1240mm (48.8 in) |
| Distance Between Knee and Hook (In, Out) | min. 350mm (13.8 in), Max. 180mm (7.1 in) |
| Distance Between Headblocks (Center to Center) | 1,5 m x 2 m x 2,5 m (Optional) |
| Rail Length | 18 meters (6 m X 3 Units) |
| Rail Width | 1608 mm (63.3 in) |
| Carriage Drive System | 18.5 kW Electrodynamic System - Steel Rope - Ø 16 mm (0.6 in) |
| Carriage Feed Speed | Max. 105 meters / min. (More Optional) |
| Headblock Drive System | 15 kW Geared Motor |
| Headblock Movement Speed | 280 mm (11.0 in)/sec. |
| Log Turner Drive System | 3 kW x 3 Units: 9 kW in total Geared Motor |
| Log Turner Lifting Arms | Hydraulic Piston – 6 Piston |
| Hook Drive System | Hydraulic piston Ø 50 mm (2.0 in) |
| Guideway Lubrication System | Fully Automatic. Timed. Thin Oil. |
| Hydraulic Unit Motor | 15 kW |
| Hydraulic Oil Cooling System | Automatic Thermostat Radiator Fan |
| Power Line Between Car and Controller | Cable Carrier Rollers or Scissor Carrying Arm |
| Electrical Material | Siemens SIRIUS |
| Remote Control Panel Position | As a Platform |
| Remote Control Panel | Console + Setting. Seat + PLC Color Screen + 2 Joysticks |
| Machine Weight | 9500 Kg (20,944 lb) |

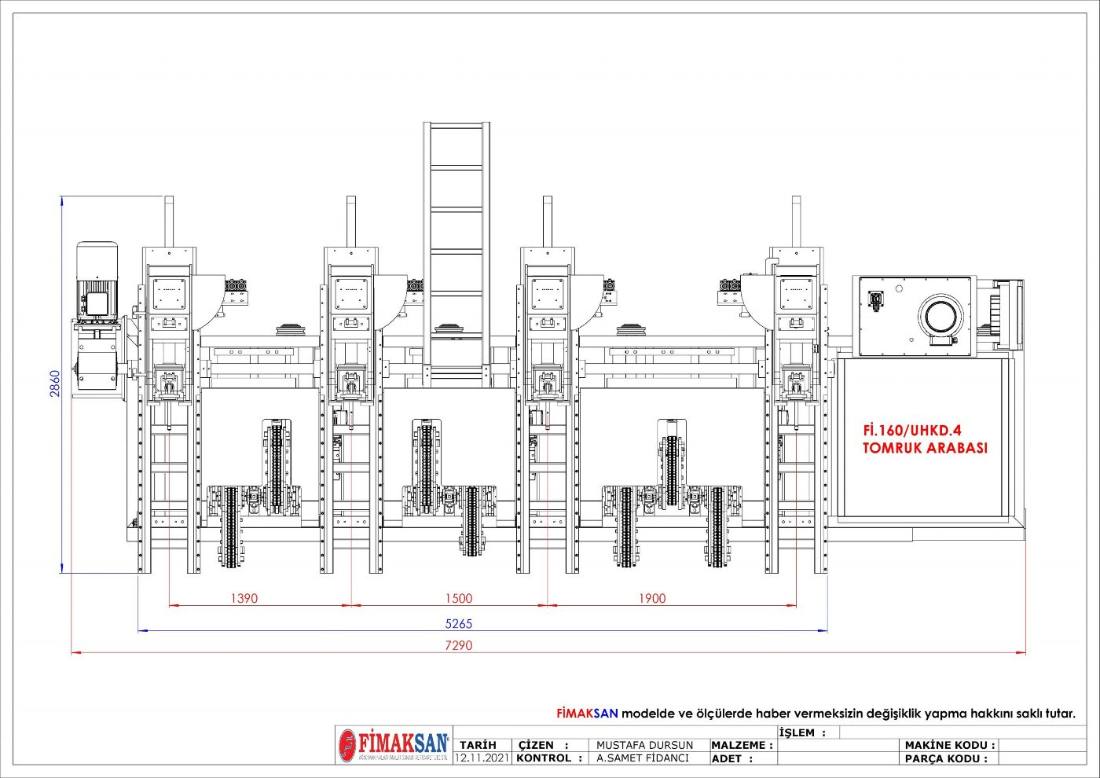

| Machine Dimensions | 290 x 230 x 790 cm (114.2 x 90.6 x 311.0 in) |
| Shipping Method | 40” Container – High Type (HC) |
