FMR / 155 P – MULTI SLICING

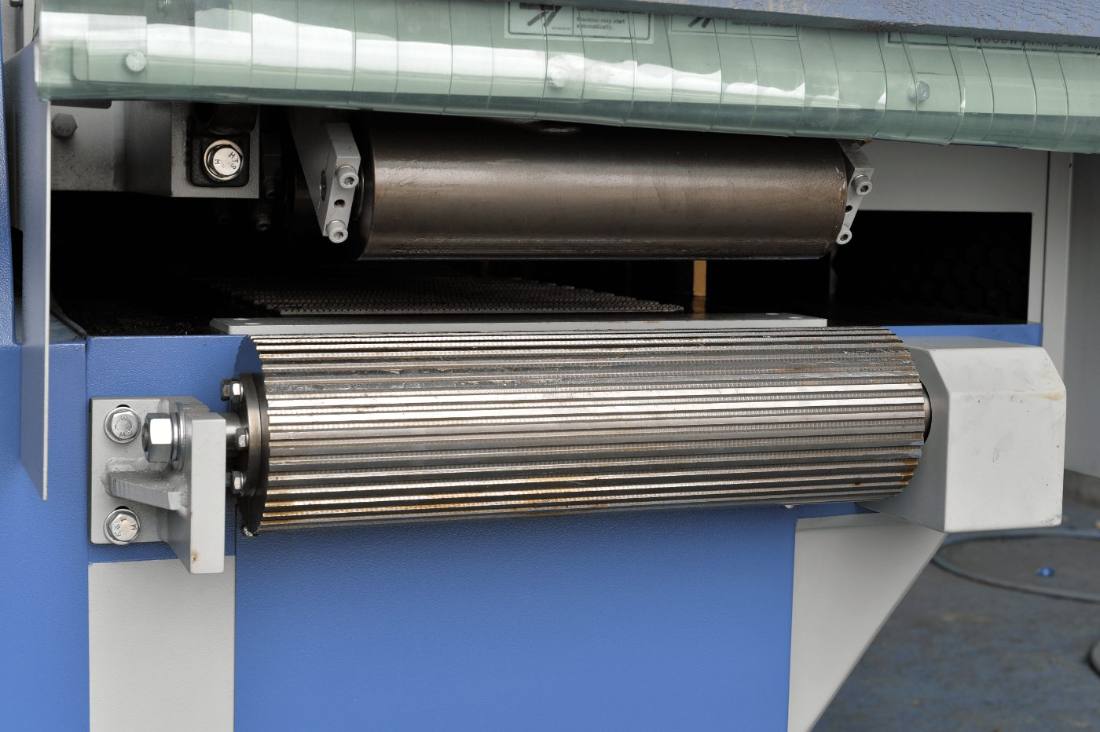

PNEUMATIC ROLLERS
CATERPILLAR CHAIN PALLET

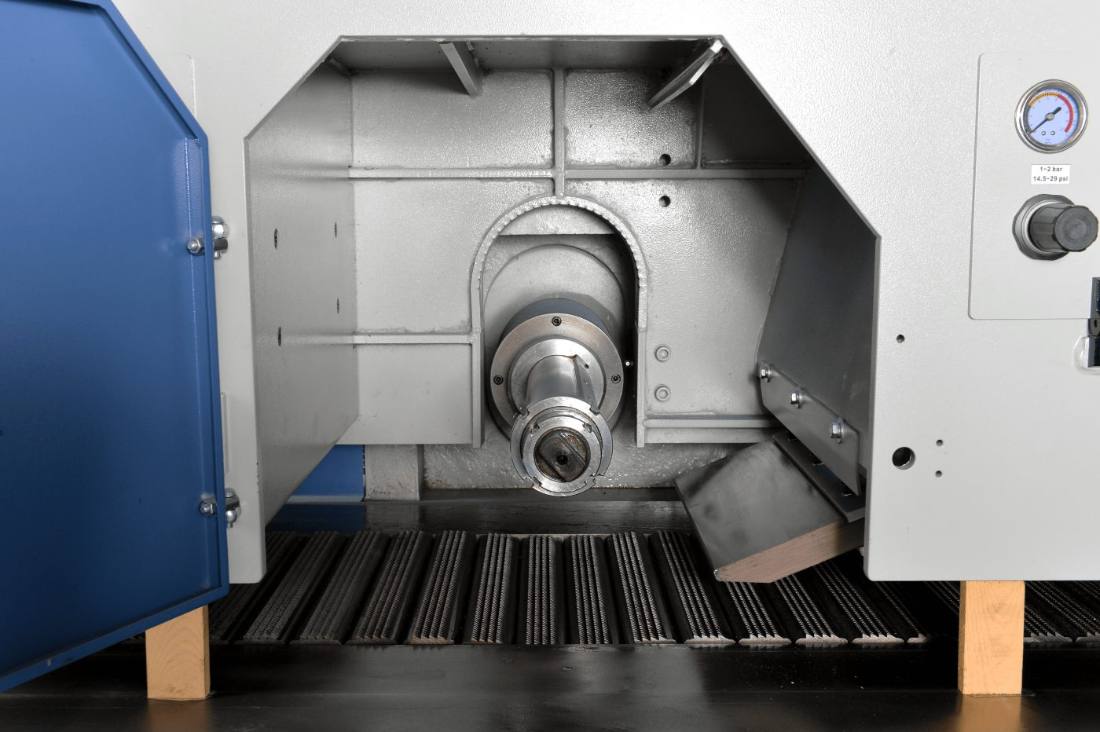

SINGLE SPINDLE
MONOBLOK CAST IRON BODY
SILENT
Technical Specifications
| Cutting Thickness | Max: 155 |
|---|---|
| Min. Cutting Width | Min: 350mm (13.8 in) |
| Min. Cut Length | Min: 800mm (31.5 in) |
| Max. Saw Blade Diameter | Max: 450mm (17.7 in) |
| Max. Saw Blade Diameter | Min: 355mm (14.0 in) |
| Saw Blade Hole Diameter | 70mm (2.8 in) |
| Main Spindle Diameter | 55mm (2.2 in) |
| Saw Blade Turn Speed | 2500 rpm. |
| Saw Blade Turn Speed | 3000 rpm. |
| Saw Main Motor Power | 75 hp |
| Caterpillar Feed Chain Movement Motor | 3 hp |
| Caterpillar Movement Speed | 2.2-24 m/min |
| Spindle Elevation Motor | 1.0 hp |
| Daily Capacity | 50 m3 (≈21,190 bd ft) |
| Work Table Dimension | 1840 x 790 |
| Dimensions (L x W x H) | 2340 x 1590 x 1510 |
| Weight | 2700 Kg (5,952 lb) |
| Weight + Packing | 3000 Kg (6,614 lb) |
| Hold Down Rollers | pneumatic system |
| Pneumatic Thickness Tolerance (flexibility) | Max. 25mm (1.0 in) |
