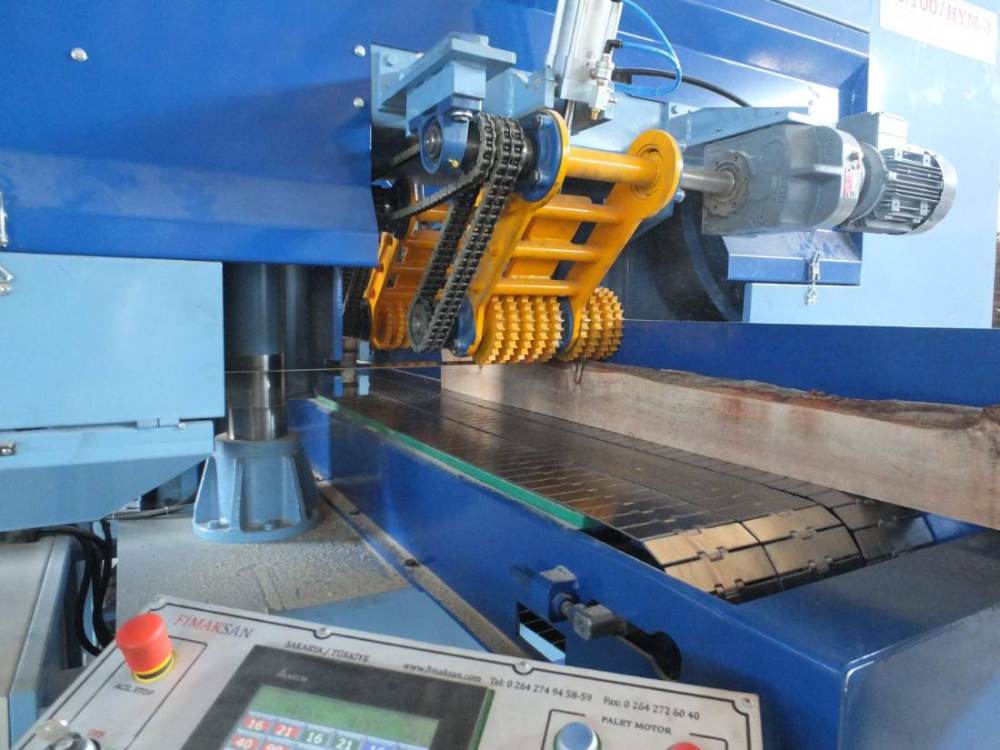

HORIZONTAL RESAW - HYDRAULIC
– 2 HEAD
Technical Specifications
| Flywheel Diameter | 1000mm (100cm (39.4 in)) |
|---|---|
| Flywheel Width | 120mm (12cm (4.7 in)) |
| Cutting Width | Max: 450mm (17.7 inches) |
| Cutting Height | Min: 15mm (0.6 in). Max: 290mm (11.4 in) |
| Sawblade Tensioning | Hydraulic System Piston |
| Cutting Height Adjustment | 4 kW gearmotor |
| Main Motor | (2 x 40 hp) – 2 x 30 kW |
| Feed Rate | 2 mt to 6 mt / min. |
| Positioning | Plc control color digital display |
| Flywheel Cleaning | Pneumatic Scraper System |
| Sawblade Lubrication Spray System | Automatic timed / manual |
| Upper Pressure Roller and Drive System | Pneumatic- Motor with movable inverter |
| Weight | 7500 Kg (16,535 lb) |
