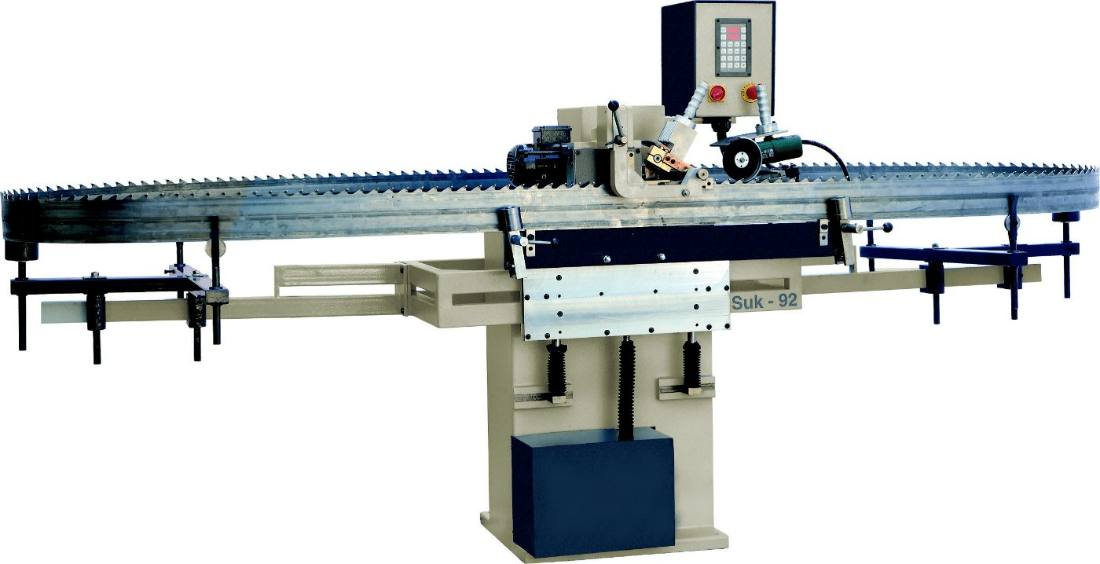

Specially designed for welding Stellite rod onto the cutting tooth tips of band saw blades. The Stellite tip is welded to the band saw tooth by electric welding; the welding current varies with the band saw thickness and Stellite rod diameter. The welded Stellite rod is then cut manually with the cutting motor mounted on the machine.
Technical Specifications
| Band Saw Length | Min: 5,5 mm (2.2 in) |
|---|---|
| Tooth Pitch | 25 – 60 mm (2.4 in) |
| Tooth Height | 6 – 30 mm (1.2 in) |
| Stellite Rod Diameter | Ø 4 mm (0.2 in) / 5 mm (0.2 in) / 6 mm (0.2 in) |
| Stellite Cutting Wheel Diameter | Ø 115 mm (4.5 in) X 1,0 mm (0.4 in) X 22 mm (0.9 in) |
| Stellite Cutting Wheel | A54 R BF80 – Metal |
| Number of Motors | 3 |
| Total Power | ~0,50 kW |
| Operating Voltage | 380 V, 3 phase, 50 Hz |
| Weight | Net: 350 kg (772 lb) – Gross: 375 kg (827 lb) |
| Dimensions | 120 x 80 x 160 cm (47.2 x 31.5 x 63.0 in) (Length Width Height) |
